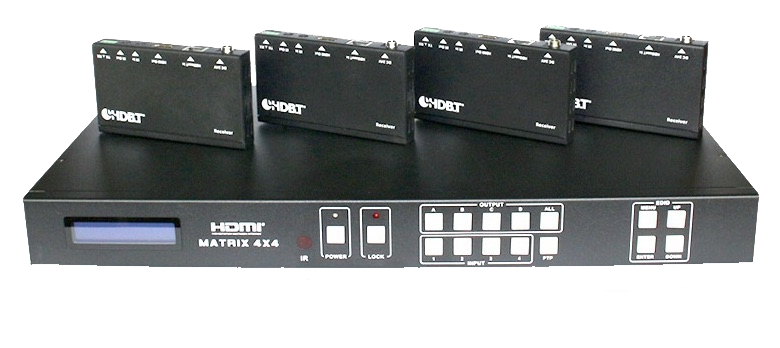

4x4 4K HDMi Matrix, Mirrored HDMI and HDBase T Outputs
4×4 4K HDMi Matrix, Mirrored HDMI and HDBase T Outputs
4×4 4K HDMi Matrix, Mirrored HDMI and HDBase T Outputs
Description
• Allows 4 HDMI audio/video sources to be simultaneously distributed to up to 8 display devices
• 120m for 4K, 150m for 1080P
• Up to 4K2K@50/60Hz (4:4:4),HDR10, HDR10+, Dolby Vision, HLG
• LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,DTS HD-HRA, DTS-X
• Supports up to 16 different EDID configurations
• Supports unidirectional wideband IR control from display to source
• Flexible control through on-panel buttons, IR remote control, RS-232 or Ethernet protocol
• Audio de-embedded – via a balanced analog and coax ports
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.3 |
| Video Bandwidth | 4.95 Gbps |
| Video Resolutions | up to 1080P@60Hz, and 1080P 3D@24Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| Audio Formats | PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Inputs | 4x HDMI Type A [19-pin female] 1x 9-pin D-sub [RS-232] 1x RJ45 [IP Control / LAN Serving] 5x 3.5mm Stereo Mini-jack [Infrared Receiver] |
| Outputs | 4x HDMI Type A [19-pin female] 4x RJ45 [HDMI & Propriety Data] 4x 3.5mm Stereo Mini-jack [Infrared Emitter] |
| Mechanical | |
| Housing | Metal Enclosure |
| Dimensions | 440mm [W] x 200mm [D] x 45mm [H] |
| Net Weight | 1820g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 23W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
