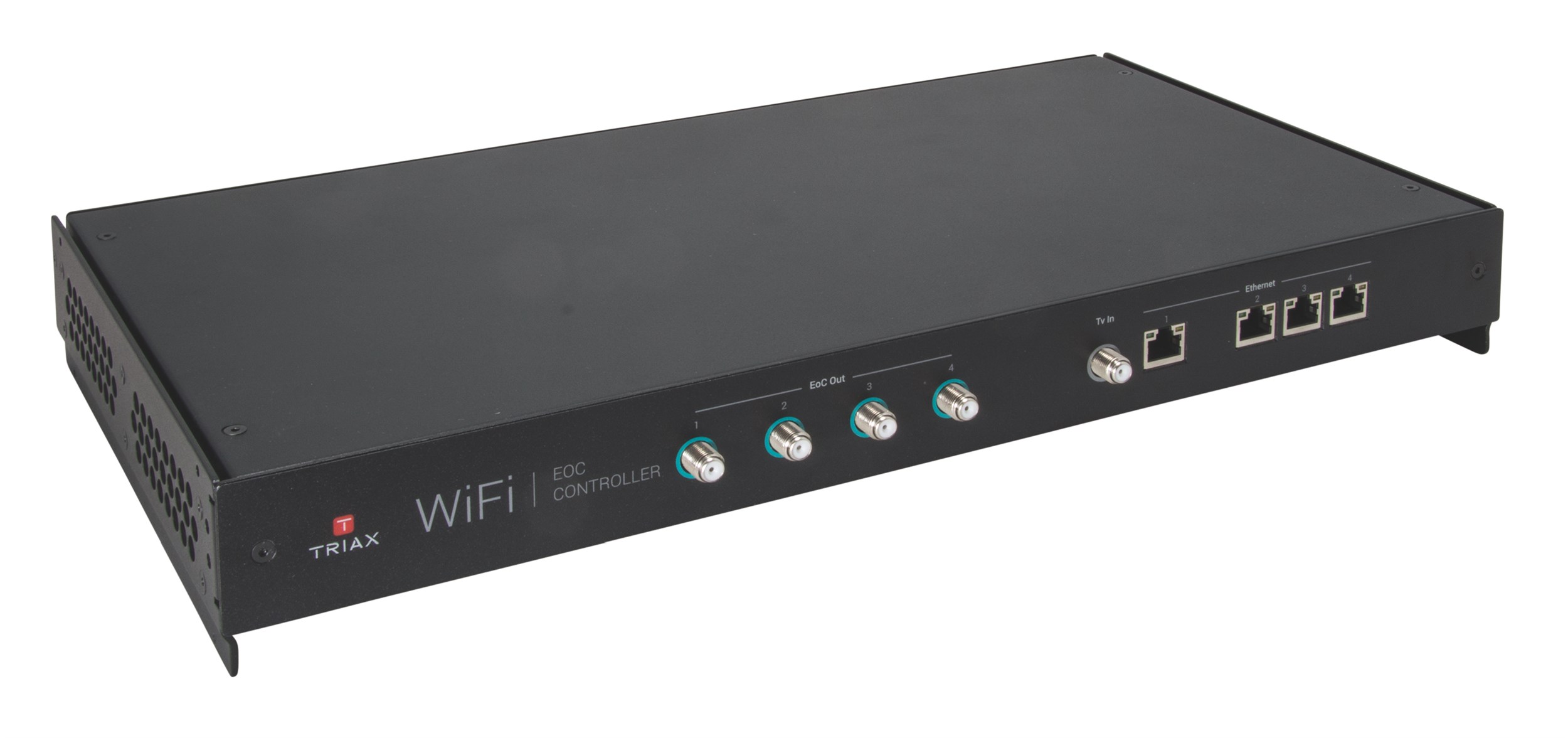

Eoc Controller 64/4 B , With WiFi Software included
Eoc Controller 64/4 B , With WiFi Software included
Eoc Controller 64/4 B , With WiFi Software included
Description
The EoC controller (V2) is used as the main unit to control up to 70 (mix of EPE & EPC) endpoints in an EoC system The controller acts as both an L2 switch for ethernet and as a media converter from ethernet to coax and back to ethernet, allowing both TV and data signals to use the same coax cable.
Main features:
G.hn for data on 1-200 MHz
TV on 300-862 MHz
4x ethernet port
4x coax EoC out ports
1x coax TV in port
Supports VLAN tagging
Supports coax stacking features- 64 EPC can be connected to total combined coax outputs sharing 1.6Gbs over 1 coax trunk.
Project pricing available.
Bulk QTY Available:
End of line: Yes
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663831056 |
| CHARACTERISTICS | |
| Traffic Management | VLAN: Portbased VLAN (802.1Q) Client Isolation (guest mode): Per SSID/VLAN Multicast: IGMP/MLD |
| Crosstalk TV IN – EoC OUT | > 51 (@200MHz) dB |
| Input level | < 115 (TV) dBµV |
| Output level | 100 (G.hn) dBµV |
| FREQUENCY | |
| Frequency Range G.hn | 2…200 MHz |
| Frequency Range TV | 300…862 MHz |
| LOSS | |
| Through Loss TV/EoC IN – TV/EoC OUT | < 8 (300…862MHz) dB |
| Through Loss EoC OUT – EoC Ana. Frontend | < 2.0 (@2…200MHz) dB |
| RETURN LOSS | |
| Return Loss EoC OUT | > 10 dB |
| Return Loss OUT | > 10 dB |
| Return Loss TV | > 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Ethernet Interface | 10/100/1000 |
| G.hn Standard | G.hn Wave 2 ITU-T G.9960 / ITU-T G.9963 (G.hn PHY) G.9962 (MAC & DLL) |
| AC Supply voltage | 230 @50Hz 0.06A VAC |
| Power Consumption (typ.) | 10…25 W |
| External PSU/adapter | Included |
| Temperature – operating | 0…50 °C |
| Humidity – operating | 5…95 % |
| CONNECTORS | |
| Connector LAN | RJ45 female |
| Connector OUT | F-female |
| MECHANICAL | |
| Dimensions product (H x D x W) | 45x220x430 mm |
| Packing QTY | 1 |
| Packaging Height | 0,073 m |
| Packaging Width | 0,463 m |
| Packaging Depth | 0,245 m |
| Packaging Volume | 0,008 m3 |
| Net Weight | 4,044 kg |
| Tara Weight | 0,263 kg |
| Total Weight | 4,307 kg |
