DVB-S2 EchoSat SHD20 Receiver
DVB-S2 EchoSat SHD20 Receiver
DVB-S2 EchoSat SHD20 Receiver
Description
Specifications
DVB-S/DVB-S2 (MPEG-2 / MPEG-4 / H.264)
Reception of all free HD programs
Resolution: 576i to 1080p
Image formats: 4:3,16:9
DiSEqC 1.0 / 1.1 / 1.2 / USALS
Unicable I & II (EN 50494 / EN 50607)
AAC-LC audio support
Media playback via USB port
Infrared sensor with integrated display
Multilingual menu in true color (32 bit)
7-day EPG (Electronic Program Guide)
8 Favorite Groups
childlock
Multilingual audio and subtitle support

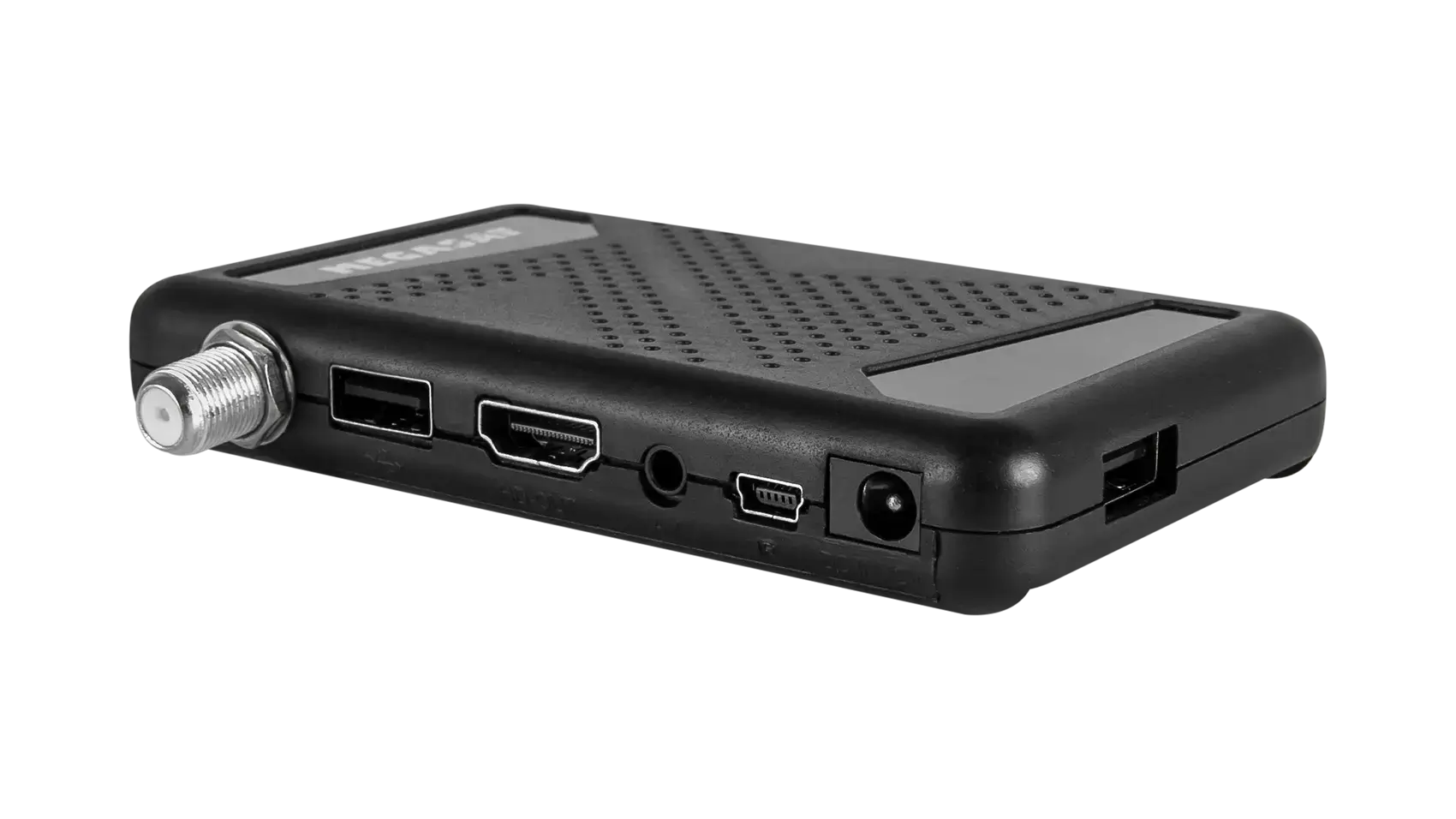

Connections
1x HDMI
1x Audio / Video (3,5 mm jack)
2x USB 2.0
1x infrared sensor
1x RS 232 (3,5 mm jack)
1x power supply
1x LNB input
Power supply:
AC 100~240 V, DC 12 V 1 A
Consumption during operation: max. 12 watts
Standby power consumption: < 0,5 watts
Simular to SHD20 Micro Receiver – Also replaces starview S1812 Receivers
Crystal-clear picture quality in Full HD
Experience your TV programs in impressive sharpness and clarity – thanks to the Full HD resolution of up to 1080p, you’ll enjoy razor-sharp images with vibrant colors and fine details. Whether it’s feature films, sports broadcasts, or documentaries – this high-quality picture reproduction makes watching TV a true pleasure. As always, this model also impresses with the user-friendly operation for which Megasat receivers are known. Intuitive menus and a clear structure make it particularly convenient to use – ideal for those who appreciate uncomplicated technology
Two USB ports for versatile media playback

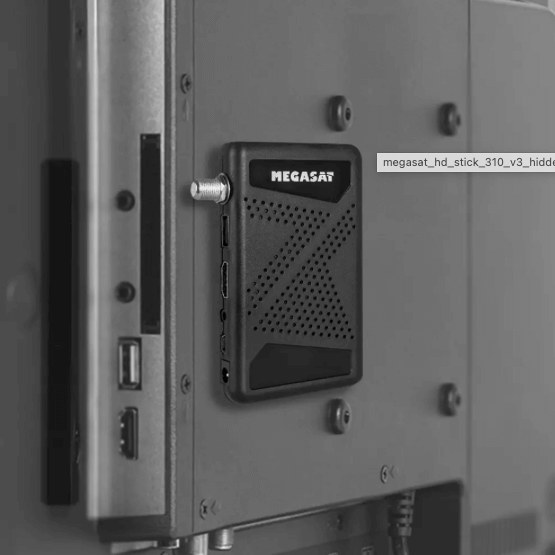

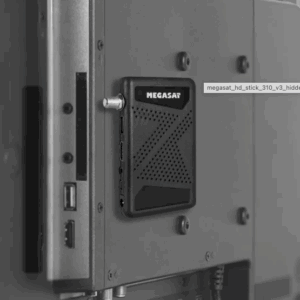

Hidden installation behind the TV – for a tidy TV experience
The Megasat HD Stick 310 V3 is the perfect solution for those who have limited space or who want to avoid visible technology. Thanks to its particularly compact design, the receiver can be discreetly installed behind the television – without any annoying cables or visible devices in the field of view.
For easy and secure installation, both a Velcro adhesive strip and a practical wall mount are included. This allows the receiver to be flexibly mounted on the back of the TV, on a cabinet wall, or on a shelf.
Even with hidden installation, operation remains convenient: The included infrared sensor ensures reliable signal transmission from the remote control and also features an integrated display that shows the current channel position at all times. This way, you retain full control – even if the receiver itself remains invisible
Delivery
- Megasat HD Stick 310 V3

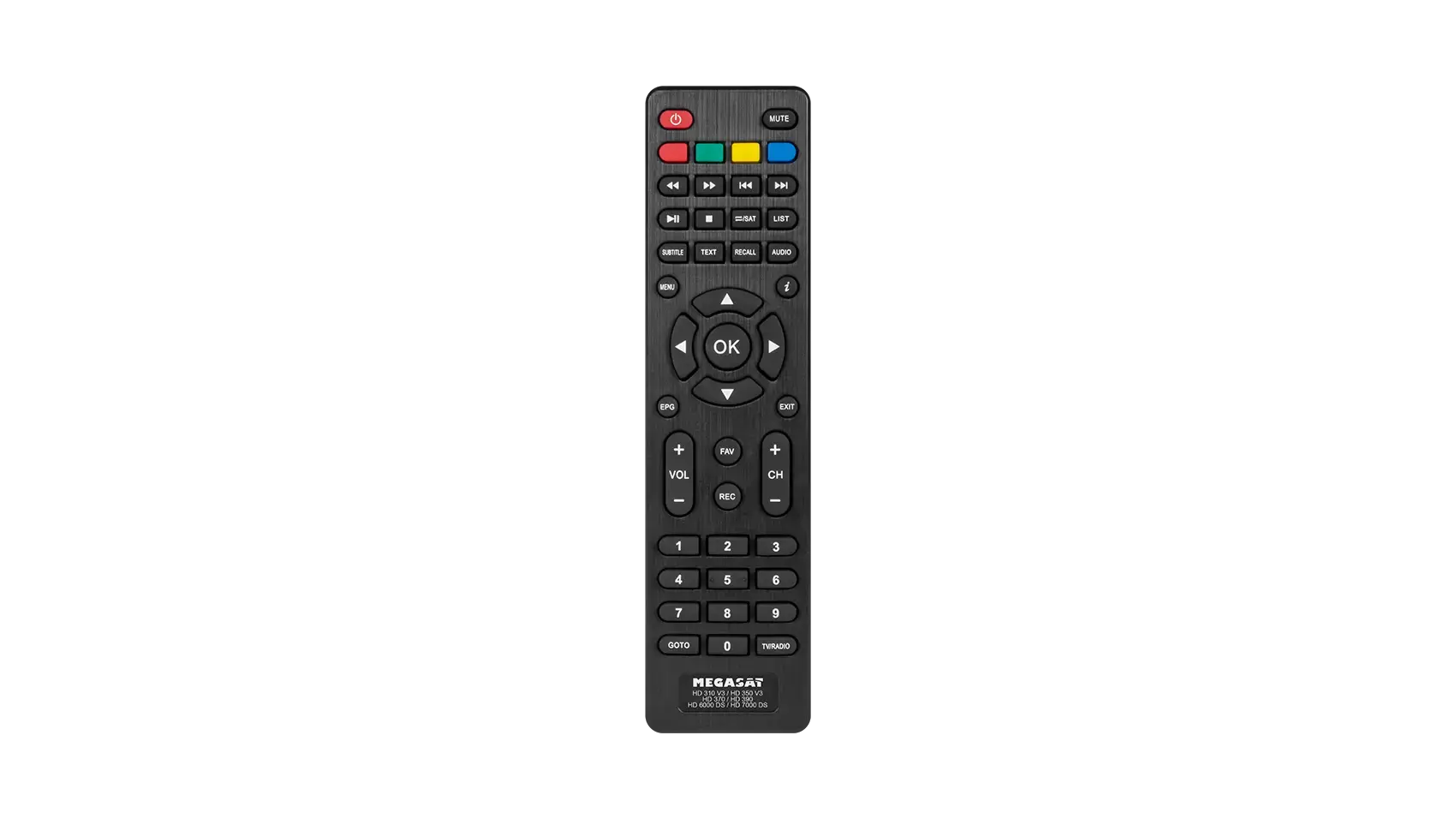

- Remote Control
- Batteries
- Infrared Sensor
- 230/12 volt power supply
- Carrier for oxygen bottles
- Velcro tape
- HDMI cable
- Manual
Dimensions / weight
- Dimensions: 108 x 18 x 65 mm (W/H/D)
- Weight: 57 g (net)
Specifications
- DVB-S/DVB-S2 (MPEG-2 / MPEG-4 / H.264)
- Reception of all free HD programs
- Resolution: 576i to 1080p
- Image formats: 4:3,16:9
- DiSEqC 1.0 / 1.1 / 1.2 / USALS
- Unicable I & II (EN 50494 / EN 50607)
- AAC-LC audio support
- Media playback via USB port
- Infrared sensor with integrated display
- Multilingual menu in true color (32 bit)
- 7-day EPG (Electronic Program Guide)
- 8 Favorite Groups
- childlock
- Multilingual audio and subtitle support
Connections
- 1x HDMI
- 1x Audio / Video (3,5 mm jack)
- 2x USB 2.0
- 1x infrared sensor
- 1x RS 232 (3,5 mm jack)
- 1x power supply
- 1x LNB input
Power Supply
- Power supply:
AC 100~240 V, DC 12 V 1 A - Consumption during operation: max. 12 watts
- Standby power consumption: < 0,5 watts
