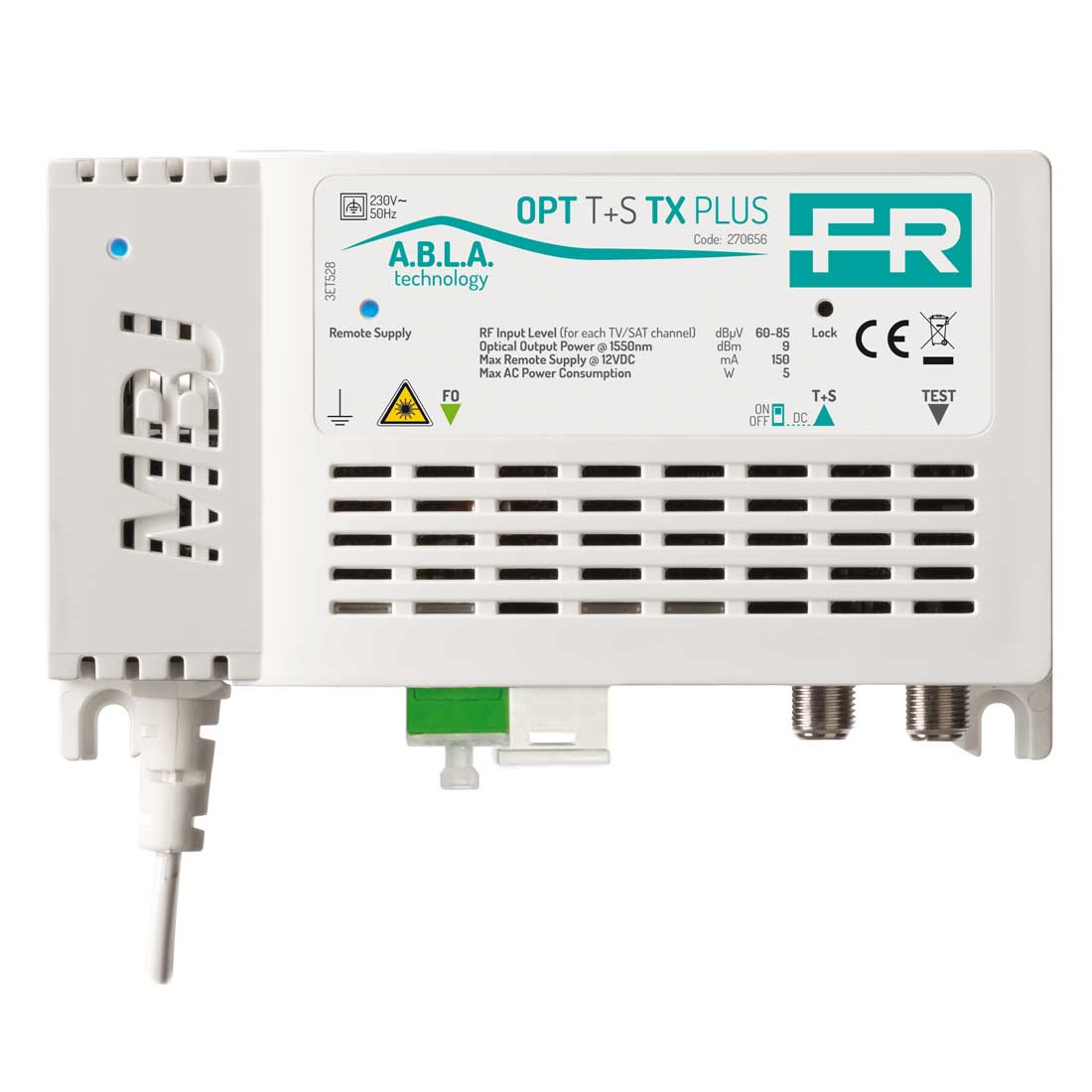

OPT-MBJ optical transmitter with a wide band input

Description

The new OPT-MBJ series transmitters and receivers exploit the potential of the passive fiber optic network (PON) to carry TV and SAT (IF-IF) signals with the highest quality and are very simple to install because they don’t need any adjustment (plug & play).
OPT-MBJ optical transmitter with a wide band input for the distribution of TV + SAT signals on a single fibre. Optical output level of 9dBm with laser, wavelength 1550nm (dimensions 135x82x39mm)

A.B.L.A. Technology: this exclusive FRACARRO system maintains the correct optical level via special independent electronic circuits, even if the RF input level of each input changes
Dedicated A.B.L.A. status LEDs
Separate amplification: the new OPT-MBJ optical transmitter works with “separate amplification” and independent handling of the RF input signals
Protective shell: OPT-MBJ optical transmitters and receivers are protected by an innovative protective shell made of flame retardant ABS material (Class V0)
Optical output level stabilisation even for high variations of the RF input signal
Monitor output: RF output connector for monitoring the RF signal without disconnecting the service from the distribution network
Broadband TV / SAT
Suitable for standard DIN rail mounting (with quick release)
Bandwidth MHz 950-2150
SAT Connectors F Female
Output level SAT dBµV 60-85 @TP

Remarks: 9dBm output , SC/APC Connectors

Size: 135 x 82 x 39mm
