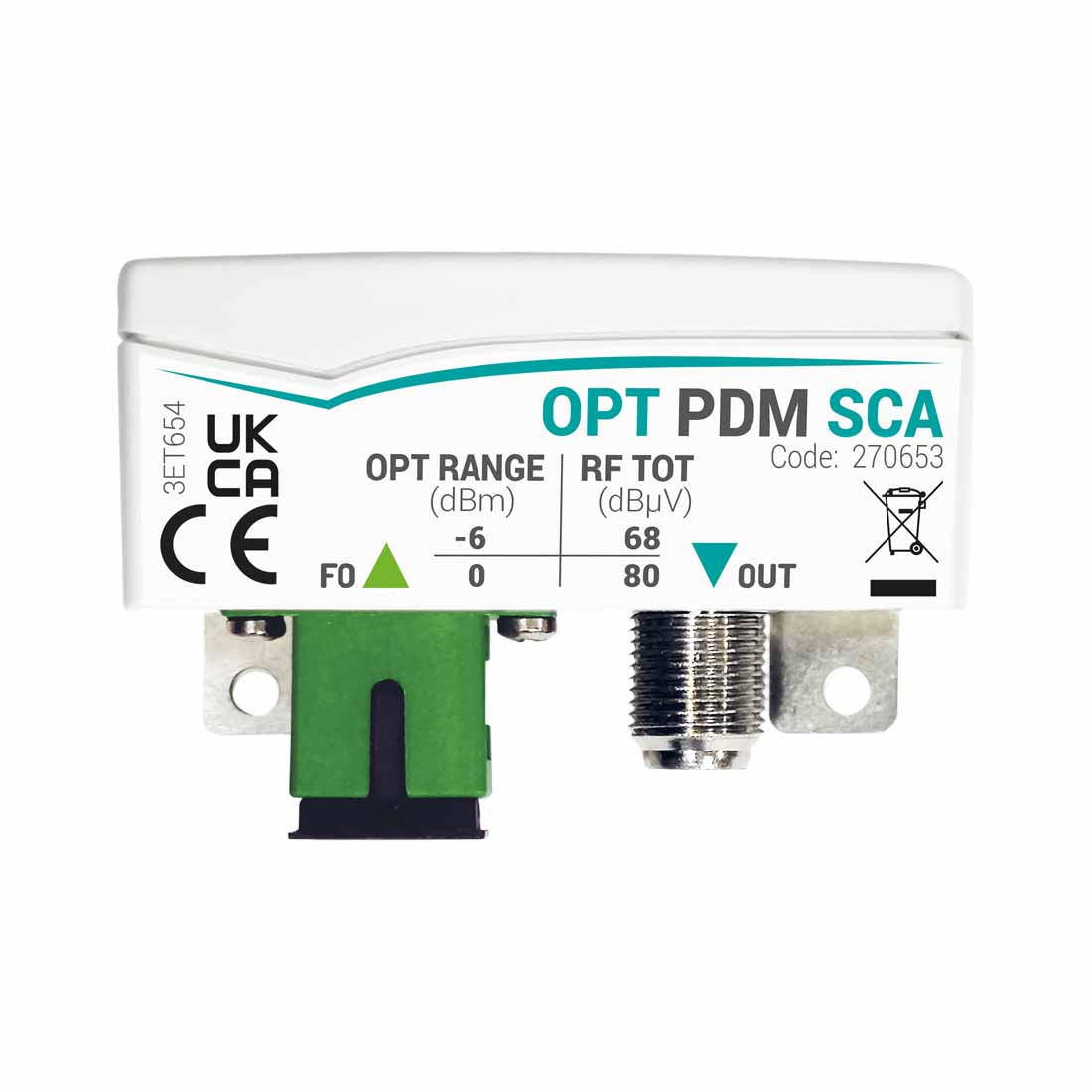

OPT-PDM Passive miniaturized optical receiver

Description

The exclusive range of OPT-PDM miniaturized optical receivers exploits the potential offered by the FTTH passive optical infrastructure to create a TV-SAT (IF-IF) distribution system even in small and medium-sized residential systems.

The optical receivers are completely passive and no power is required. The only light component available at the output of the OPT-MBJ optical transmitter and transported by the optical fiber is sufficient to make the optical receivers work and to have the correct RF signal at the highest quality on the coaxial output connector to be connected to the TVs or decoders sat.

Technical chars
SC/APC standard connector
OPT-PDM receivers do not need power supply and the optical signal received at the input is sufficient to be able to return the RF signal at the output with the highest quality
Double operating mode: the receivers can be used inside the flush-mounting boxes or in the “Retro TV” mode
Removable protective shell.
Frequency band managed: 88-2350MHz.
Optical Operating Range (typical): 0 to -6dBm
Operating optical window 1270-1610nm.

Remarks: Optical input powe dBm ≤10 (0 to -6)

Size: 47 x 33 x 15mm
