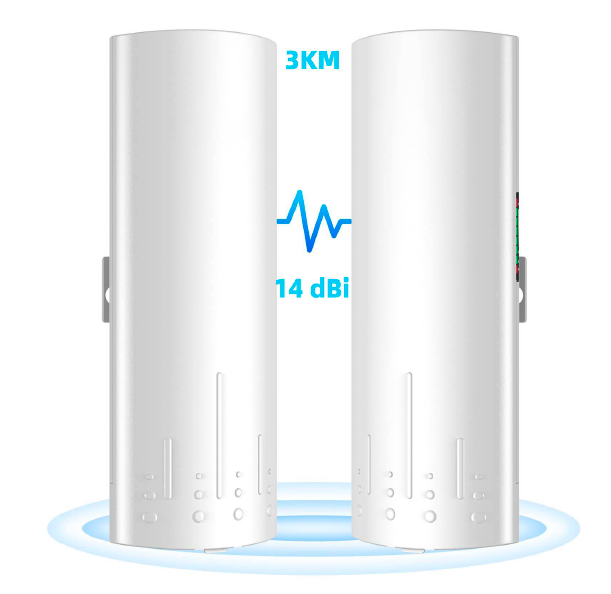

AI Smart Wireless Bridge

Product Code

AI-CPE

Brand: OEM

AI Smart Wireless Bridge

AI Smart Wireless Bridge

Code: AI-CPE Categories: , ,

Description

Wireless Bridge: up to 3KM Line of Site

5.8G high wireless transmission
Point-point, point-multiple point
2 x 14dBi High gain antennas
CPU – AR9342
Memory 64M
Flash 8M
100Mpbs digital display bridge
24V POE power supply – 2 x POE Plug Packs Supplied
2 RJ45 LAN Ethernet Port
Transmission rate 300Mbps = bandwidth 100Mbps
Transmission distance 3KM
Indicator light PWR, LAN, SYN
WifI standard EEE802.11b/g/n
Digital LED display code – Quick setup up through LED code,
Point to more support
POE power supply mode 4 5PIN:+, 7 8PIN:-
12 VDC power supply support
Supports Access point with Multipule SSID’s at the Receiving bridge.
Internal management software including , Networks, VLAN, Ping , Device search etc

Powerfuly enterprise wireless bridge. – Indoor / Outdoor use.






3Km 5.8G wireless transmission equipment. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance PtP or PtMP interconnection.

The working data link layer realizes the interconnection and transmission of local area networks.

It is equivalent to a network cable, transmitting network signals via wireless way.

It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point-to-multipoint interconnection.



Documents

Quick Set up
Basic User info
